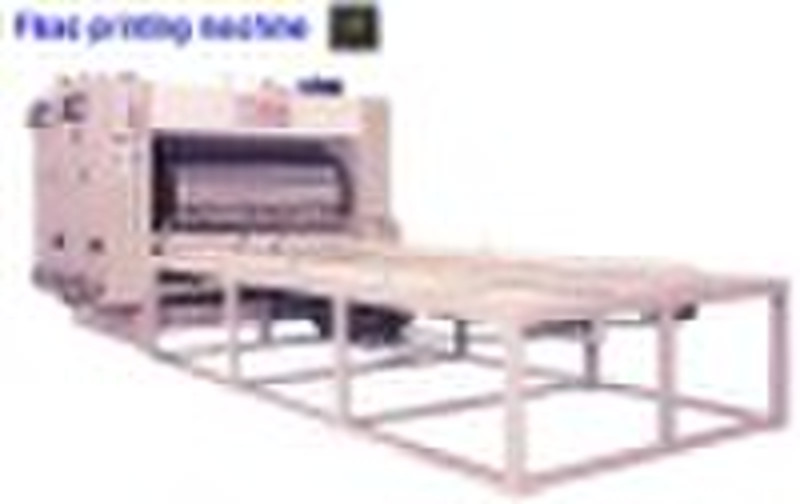

Flexo Printing machine

Machine fiuncations Printing wheel can be adjusted sideway total 20mm and also can be phase adjusted within 360 degree.Rubber roll has the automatical running funcation,which can avoide the drying when the printing suddenly.It is accurate to colour process and nice printing and easy to operate.You can pre-set the error distance of colour process and can be colour process in a time.The gear driving system uses the circulating lubrication system,which can reduce the noise and extend the gear service life and pneumatic separated and combined and locked.The paper splitting and fold-mark pressing is optional .It can finish the flexo printing , paper splitting and folding-mark pressing in a time.Parameter ModelTF-14TF-16TF-18TF-20Max. printing area (mm²)1215×20001400×25001650×25003000×2400Max. size of the cardboard (mm)1400×20001650×25001850×25003000×2600Min. size of the cardboard (mm)400400400600Applied to the thickness of the ardboard (mm)2--112--112--112--11The stndard thickness of the printing area7777Max. producing speed (sheet/min)70707070Main Motor Power(Kw)One-color3445.5Two-color45.55.57.5Three-color5.57.57.511Weight (Kg)One-color2400310035005500Two-color46006000680010500Three-color67008600980015500Dimention size (L×W×H)(mm)5050×2200×20005400×2300×20005400×2520×20005930×3600×2470
