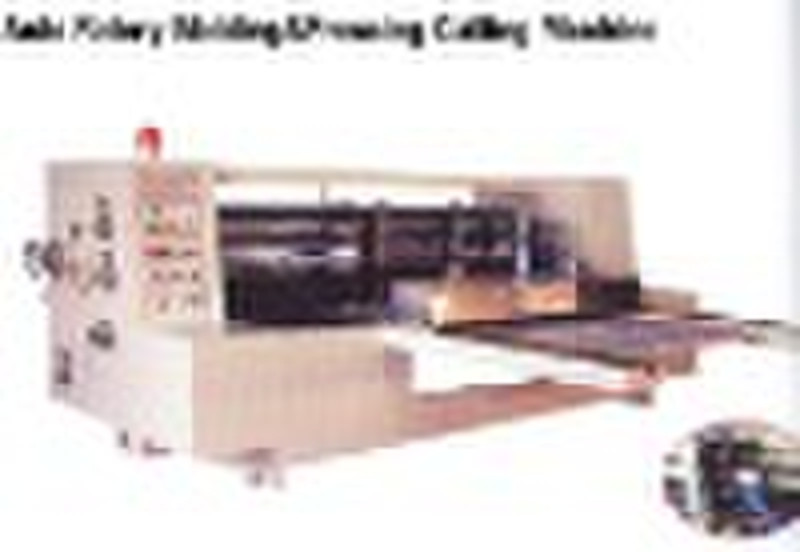

Auotomatica Rotary die-cutting machine
Wen Hu
Contact person
Basic Information
This machine adopts double-roller rotary pressing to implement the triming,cutting ,punching, and pressing fold-mark in lump for card paper and mediun to small thickness corrugated cardboard.It uses vacuum suction for secondary paper feeding ,electromagnetic speed regulating for mains,electric adjustmrent for die-cutting phase.It offers such advantages as high precision of die cutting ,fast speed and convenient operation. Modle TMQ uses the push board for paper feeding ,electric adjustment and PLC control. Modle TM uses push board for paper feeding ,electric adjudtmrnt and control. parameter ModelTM-1200TM-1500TM-1800Max. working speed (m/min.)120100100Max. cardboard size (mm)2000X12002400X15002400X1800Min. cardboard size (mm)450X300450X320450X350Max. cardboard thickness(mm)777Motor power (Kw)5.55.57.5Dimension size (L X W X H) (mm)3670X2520X15004070X2720X15004070X2920X1500
Delivery terms and packaging
Packaging Detail: container which is adapted to shipping Delivery Detail: After we receive your formal PO. in a month
Port: SHENZHEN
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
